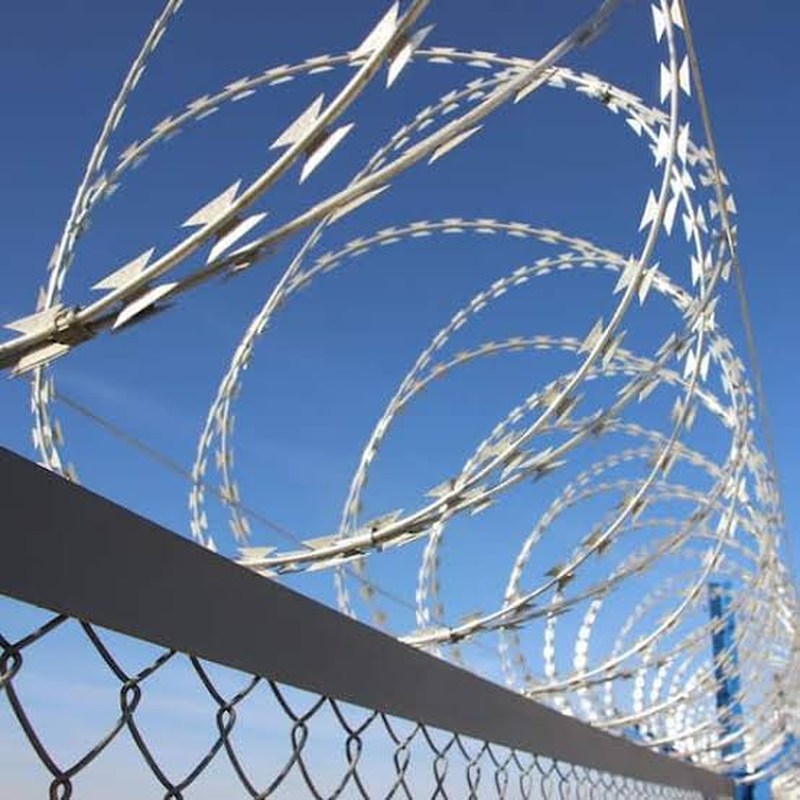

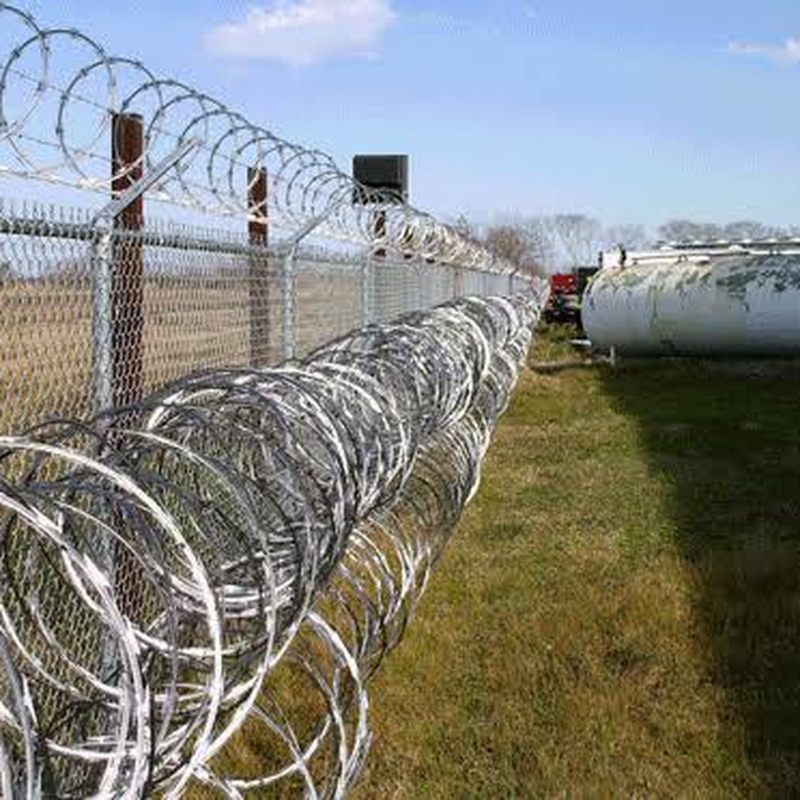

Razor is widely used for perimeter protection in various high security areas due to its strong physical anti climbing and anti shearing capabilities.
Galvanized concertina wire mesh, razor barbed wire,, concertina wire, razor wire fence.

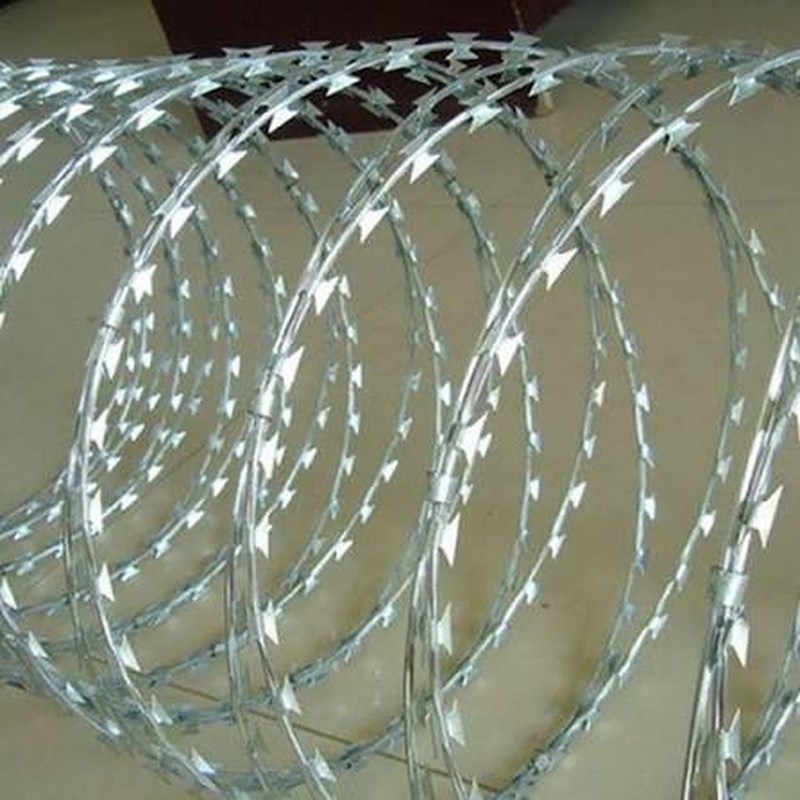

Razor wire , also known as concertina wire or razor barbed wire, is a modern safety fence material made of hot-dip galvanized steel or stainless steel plate, which has higher protection and fence strength.
The razor barbed wire is sharp and beautiful, the core wire is sturdy, and it has the characteristics of a safe fence, easy installation, and aging resistance.
● Common hot dipped galvanized (zinc coating: 30-50g/㎡）
● Hot dipped galvanized wire (zinc coating: 200-250g/㎡）
● Stainless steel
|
Razor Wire Size Specifications |
|||||
|
Model |
Thickness |
Wire Diameter |
Barb Length |
Bard Width |
Bard Spacing |
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
|
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-15 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
BTO-22 |
0.5±0.05 |
2.5±0.1 |
02±1 |
15±1 |
34±1 |
|
BTO-28 |
0.5±0.05 |
2.5±0.1 |
28 |
15 |
45±1 |
|
CBT-30 |
0.5±0.05 |
2.5±0.1 |
30 |
18 |
45±1 |
|
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±1 |
|
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±1 |
Highlights at a glance of razor wire
Razor wire is made of high quality steel strip and steel wire
Hot dip galvanized treatment for excellent rust and corrosion resistance
PVC coated surface available for enhanced anti-aging performance
Uniform coating layer, not easy to peel or fade
Resist erosion from rain, snow and harsh outdoor weather
