Galvanized concertina razor wire is a protective product, with a stainless steel wire or galvanized wire core and a razor sheet tightly wrapped around the inner core on the outside.
Share
Product Description

Upgrade your perimeter security with galvanized concertina wire. Galvanized concertina wrie can be directly clipped onto existing fences, walls, or gates, without the bulky volume of traditional spiral blade gill nets, adding an efficient anti climbing and anti cutting layer



Excellent design of galvanized concertina razor wire: The galvanized concertina razor wire is made of high-quality steel and has undergone hot-dip galvanizing treatment.



Galvanized concertina razor wire surface with thick zinc coating to ensure its long-lasting strength and corrosion resistance. It can perform well even in harsh environments and is durable.

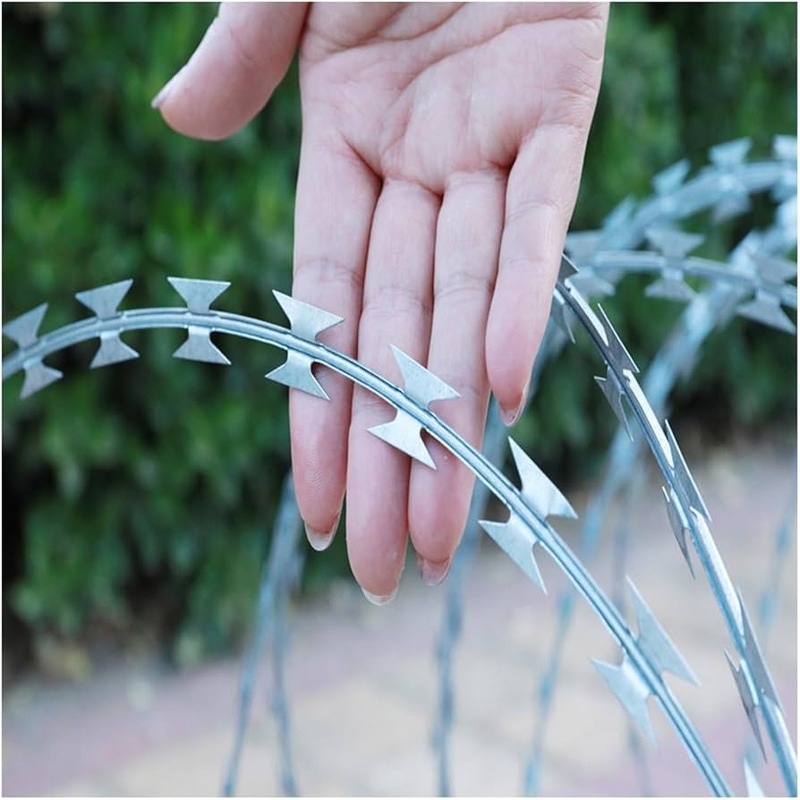

Upgraded and enhanced: The galvanized concertina razor wire roll's spikes  have been reinforced, making them sharper, while the core wire has high elasticity. This ensures that it has both high strength and strong deterrence, providing better security protection.

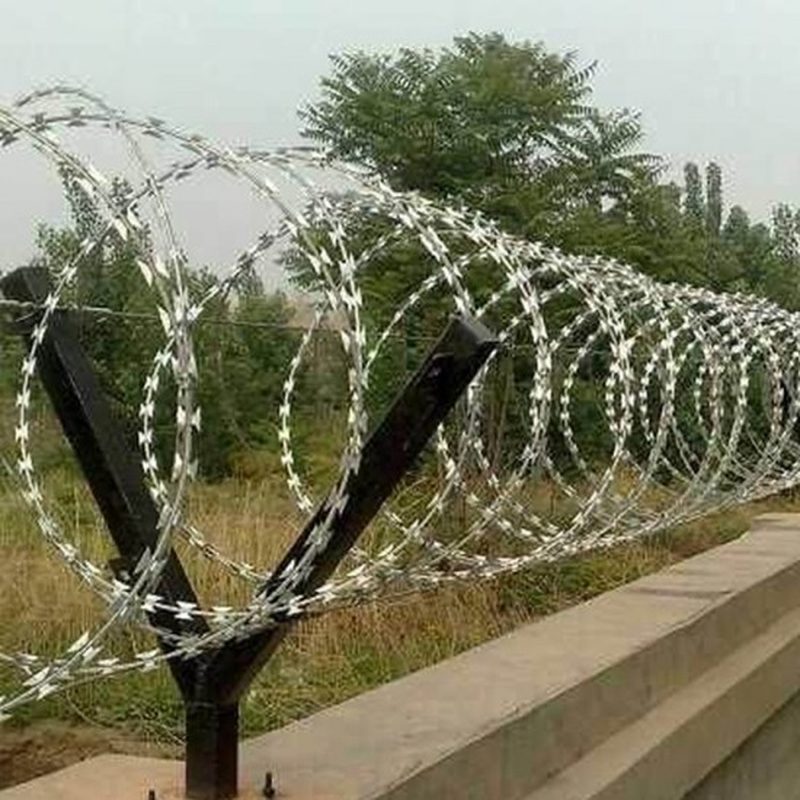

Widely applicable: Galvanized concertina razor wire is very suitable for use in fences, walls, roofs, highway barriers, temporary site barriers, utility poles, and any other places where unauthorized access or climbing is required.

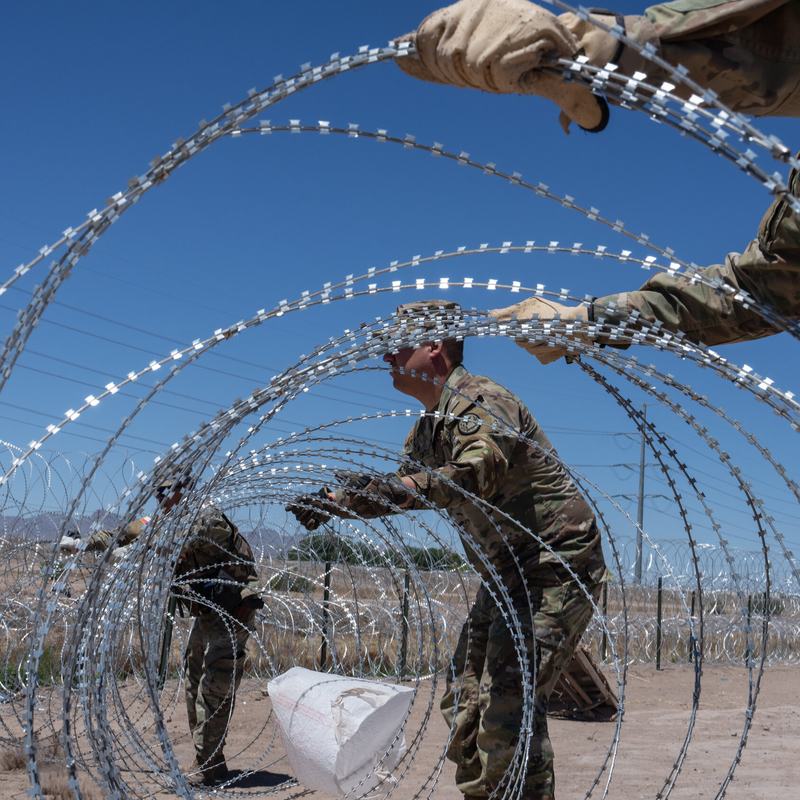

Easy installation: Use wire or metal bracket to fix the galvanized concertina razor wire. It can be straightened or folded as needed, and trimmed according to your specific requirements. The simple installation process can save you time and effort.



Galvanized Concertina Razor Wire
Galvanized Concertina Razor Wire
Galvanized Concertina Razor Wire

Technical Specification of Galvanized Concertina Razor Wire



Razor Wire Size Specifications

 Model

Thickness

Wire Diameter

Barb Length

Bard Width

Bard Spacing

(mm)

(mm)

(mm)

(mm)

(mm)

BTO-12

0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-15

0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO-22

0.5±0.05

2.5±0.1

02±1

15±1

34±1

BTO-28

0.5±0.05

2.5±0.1

28

15

45±1

CBT-30

0.5±0.05

2.5±0.1

30

18

45±1

CBT-60

0.6±0.05

2.5±0.1

60±2

32±1

100±1

CBT-65

0.6±0.05

2.5±0.1

65±2

21±1

100±1



OutsideDiameter

No. of Loops

Standard Length per Coil

Razor Type

Notes

450mm

33

7M-8M

CBT-60, 65

Single Coil

500mm

56

12M-13M

CBT-60, 65

Single Coil

700mm

56

13M-14M

CBT-60, 65

Single Coil

960mm

56

14M-15M

CBT-60, 65

Single Coil

450mm

56

8M-9M (3clips)

BTO-10, 12, 18, 22, 28, 30

Cross Type

500mm

56

9M-10M (3clips)

BTO-10, 12, 18, 22, 28, 30

Cross Type

600mm

56

10M-11M (3clips)

BTO-10, 12, 18, 22, 28, 30

Cross Type

600mm

56

8M-10M (5clips)

BTO-10, 12, 18, 22, 28, 30

Cross Type

700mm

56

10M-12M (5clips)

BTO-10, 12, 18, 22, 28, 30

Cross Type

800mm

56

11M-13M (5clips)

BTO-10, 12, 18, 22, 28, 30

Cross Type

900mm

56

12M-14M (5clips)

BTO-10, 12, 18, 22, 28, 30

Cross Type

960mm

56

13M-15M (5clips)

BTO-10, 12, 18, 22, 28, 30

Cross Type

980mm

56

14M-16M (5clips)

BTO-10, 12, 18, 22, 28, 30

Cross Type
