Flat Wrap Razor Wire

The flat wrap razor wire is technically known as the spiral razor wiret, mainly installed on top of the wire mesh fence and used for anti climbing safety fences.

Inquire Now

Product Description

Flat wrap razor wire is a type of flat spiral razor wire designed for quick installation above steel fence panels or existing walls, forming a highly secure perimeter barrier. To further enhance safety, razor wire or barbed wire can be added to the top of the column of the flat wrap razor wire

The flat wrap razor wire adopts high-strength reinforcement tape, which has extremely high strength and is extremely difficult to cut. In addition, the width of the flat coil can be reduced from 700 millimeters to less than 10 millimeters, significantly improving safety.

Flat wrap razor wire is made of various metal composite materials, including hot-dip galvanized (275 grams/㎡), 304 stainless steel or 430 stainless steel - with a total length of 15 meters per roll. The roll diameter can be selected from 500mm, 700mm, or 900mm.

Razor Wire Size Specifications
Model	Thickness	Wire Diameter	Barb Length	Bard Width	Bard Spacing
Model	(mm)	(mm)	(mm)	(mm)	(mm)
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-15	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	02±1	15±1	34±1
BTO-28	0.5±0.05	2.5±0.1	28	15	45±1
CBT-30	0.5±0.05	2.5±0.1	30	18	45±1
CBT-60	0.6±0.05	2.5±0.1	60±2	32±1	100±1
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	100±1
Material: Hot dipped galvanized wire or stainless steel wire

OutsideDiameter	No. of Loops	Standard Length per Coil	Razor Type	Notes
450mm	33	7M-8M	CBT-60, 65	Single Coil
500mm	56	12M-13M	CBT-60, 65	Single Coil
700mm	56	13M-14M	CBT-60, 65	Single Coil
960mm	56	14M-15M	CBT-60, 65	Single Coil
450mm	56	8M-9M (3clips)	BTO-10, 12, 18, 22, 28, 30	Cross Type
500mm	56	9M-10M (3clips)	BTO-10, 12, 18, 22, 28, 30	Cross Type
600mm	56	10M-11M (3clips)	BTO-10, 12, 18, 22, 28, 30	Cross Type
600mm	56	8M-10M (5clips)	BTO-10, 12, 18, 22, 28, 30	Cross Type
700mm	56	10M-12M (5clips)	BTO-10, 12, 18, 22, 28, 30	Cross Type
800mm	56	11M-13M (5clips)	BTO-10, 12, 18, 22, 28, 30	Cross Type
900mm	56	12M-14M (5clips)	BTO-10, 12, 18, 22, 28, 30	Cross Type
960mm	56	13M-15M (5clips)	BTO-10, 12, 18, 22, 28, 30	Cross Type
980mm	56	14M-16M (5clips)	BTO-10, 12, 18, 22, 28, 30	Cross Type

Flat wrap razor wire is more suitable for use in densely populated areas than standard concertina razor wrei . In addition, the coils of the flat wrap razor wire is centrally placed to make its structure more compact.

Application Scope of Flat Wrap Razor Wire:

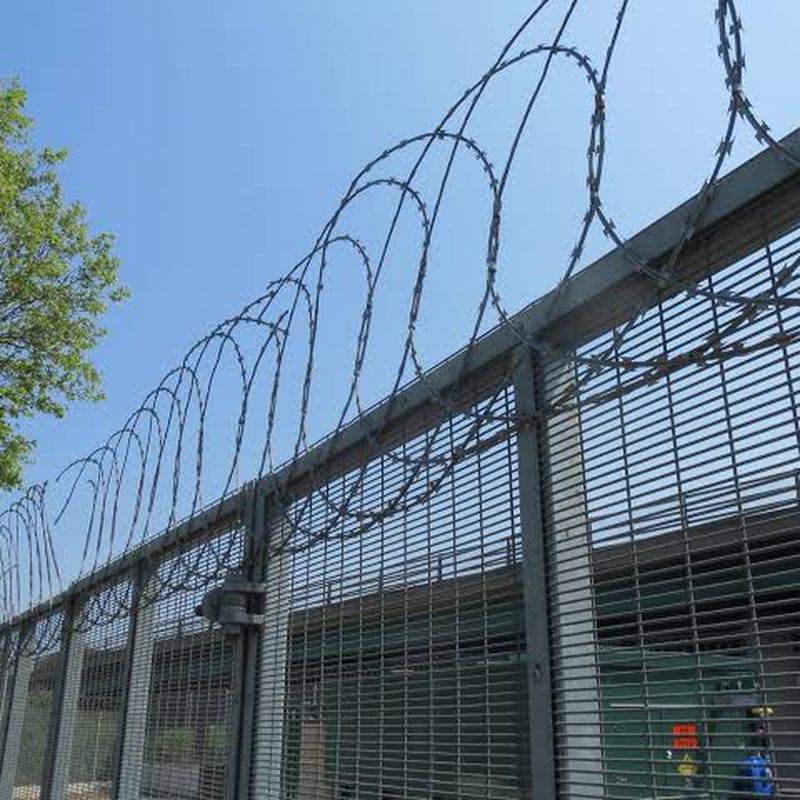

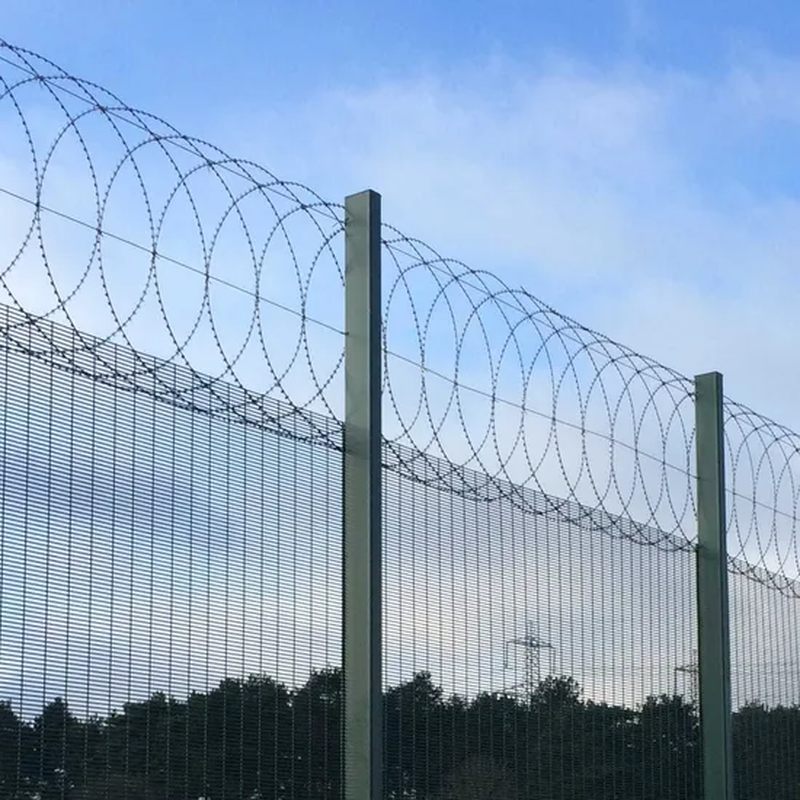

Flat wrap razor wire is used for high security perimeter fences, for walls or fence tops in high security areas,such as for military base; prison; airport; Sensitive locations.

If you would like more information about this product, please feel free to contact us. Recommend other popular products for you.: razor wire fence manufacturer
